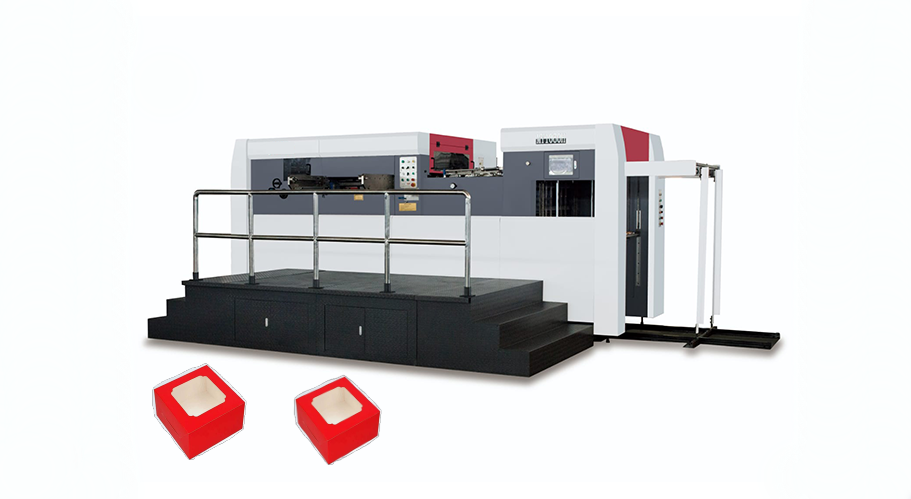

High Speed Automatic Die Cutting & Creasing Machine, which is fitted with creasing dies, side wheel adjustment is provided for increasing and decreasing the height as per requirement. This is basically special equipment applying to die-cutting of advanced coloured boxes made of paper and Paper Board. In order to ensure performance & sturdy construction, this machine is tested on various industry norms.
| Model | MY-1050FAST | MY-880FAST |
| Max.paper size | 1060×760mm | 880x610mm |
| Min.paper size | 380×340mm | 320x240mm |
| Max.cutting size | 1040×750mm | 860x590mm |
| Max.die cutting speed | 10000s/h | 10000s/h |
| Sheet thickness | Corrugated board: ≤4mm Cardboard:0.1-4mm | 0.1~4mm |
| Die Cutting Accurate | ±0.1mm | ±0.1mm |
| Min. Gripper Edge | 7mm | 7mm |
| Max. Feeding Pile | 1600mm | 1400mm |
| Max. Delivery Pile | 1400mm | 1100mm |
| Max.pressure | 350 Tons | 250 Tons |
| Total power | 21 Kw | 15kw |
| Net weight | 17 Tons | 13T |
| Air requirement | 0.8Mpa, ＞0.36m³/min | 0.8Mpa, ＞ 0.36m3/min |
| Overall dimension(Including Pre- feeding, Platform) | （5100+1450）×（2280+1850）×2230(+670)mm | 6600x3500x2000mm |
